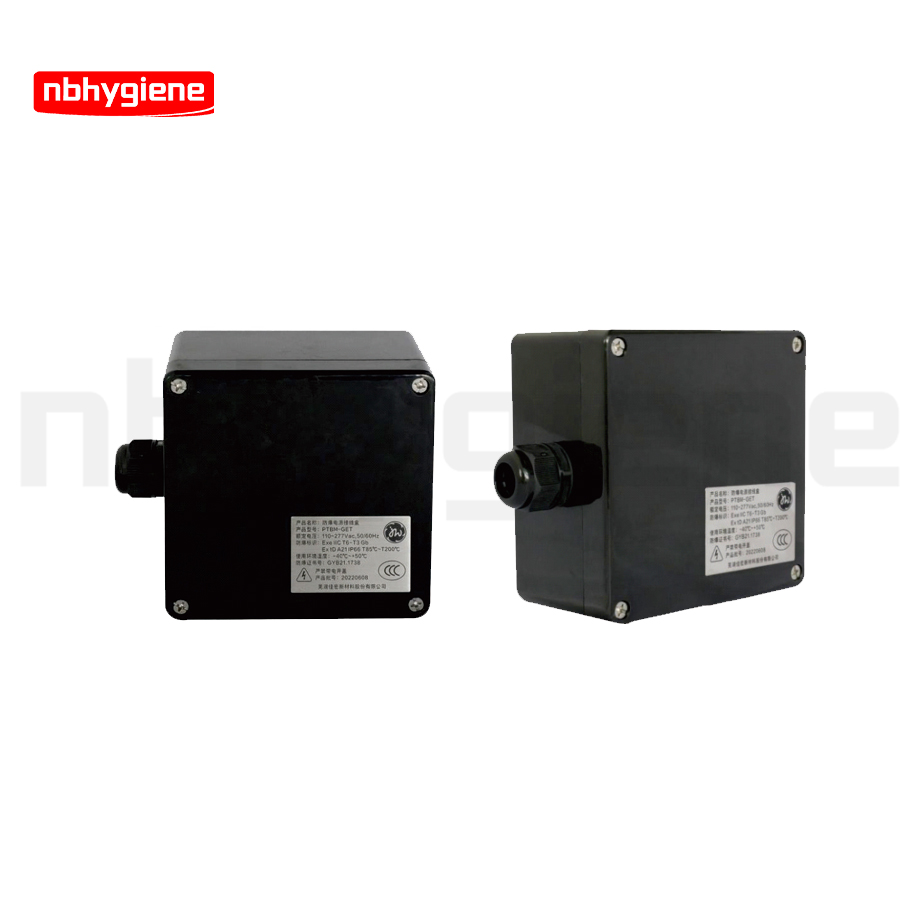

| Ref No.: | PTBS-GET-160 |
| Composition: | 1 junction box with terminal, 1 support base
|

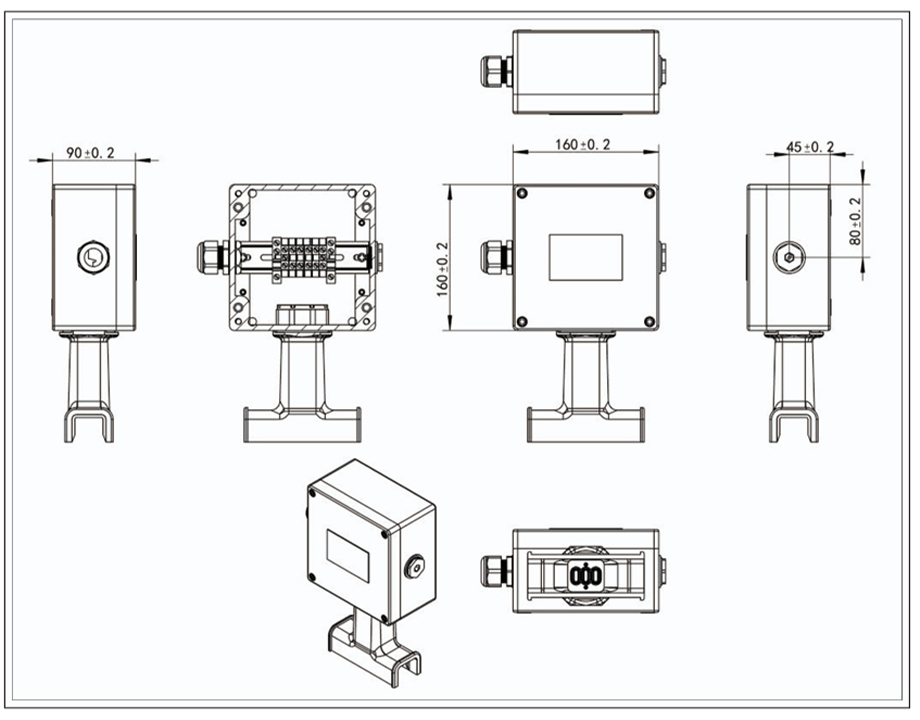

| Dimensions: | The main body dimensions are 160*160*90 (unit mm), excluding the support base dimensions
|
| Applicable Heating Cable: | LHTR 、 15HTR 、 HTU⁺ |
| Protection level: | IP66 |
| Ambient temperature range: | - 60℃~+60℃ |
| Minimum installation temperature: | - 60℃ |
| Explosion-proof mark: | Ex eb ⅡC Gb,Ex tb ⅢC Db |
| Rated voltage: | 110~277Vac 380Vac/660Vac 50/60HZ |
| Shell, cover, and bracket: | BMC unsaturated polyester
|
| Lid screws: | Stainless steel
|
| Ref No. | Product Name | Product Description | Applicable line type |
| PTBS-GET-160SP | PTBS Explosion-Proof Junction Box
| Polyester Enclosure: 160mm (W) x 160mm (H) x 90mm (D) 1- PTBS Junction Box 160 Size Enclosure, 1 M40×1.5 Hole at the Bottom 1 M25×1.5 Hole on Each Left and Right Side 1- PTBS-GET-S3 Bracket 1 M25×1.5 Explosion-proof Cable Gland (Round, PA66 Material) 1 M25×1.5 Explosion-proof Blind Plug (PA66 Material) 4 UK6N or Equivalent Terminal Blocks 2 USLKG6 or Equivalent Ground Terminals | HTU⁺ |
| PTBS-GET-160SS | PTBS Explosion-Proof Junction Box
| Polyester housing: 160mm (W) x 160mm (H) x 90mm (D) 1- PTBS junction box 160 specification housing, 1 M40×1.5 hole at the bottom 1- PTBS-GET-S3 bracket 4- UK6N or terminals of the same specification 2- USLKG6 or grounding terminals of the same specification | HTU⁺ |
| PTBS-GET-160ST | PTBS Explosion-Proof Junction Box
| Polyester housing: 160mm (W) x 160mm (H) x 90mm (D) 1- PTBS junction box 160 specification housing, 1 M40×1.5 hole at the bottom 1- PTBS-GET-S3 bracket 4- UK6N or terminals of the same specification 2- USLKG6 or grounding terminals of the same specification | HTU⁺ |
| PTBS-GET-160P | PTBS Explosion-Proof Junction Box
| Polyester Enclosure: 160mm (W) x 160mm (H) x 90mm (D) 1- PTBS Junction Box 160 Size Enclosure, 1 M40×1.5 Hole at the Bottom 1 M25×1.5 Hole on Each Left and Right Side 1- PTBS-GET-S4 Bracket 1 M25×1.5 Explosion-proof Cable Gland (Round, PA66 Material) 1 M25×1.5 Explosion-proof Blind Plug (PA66 Material) 4 UK6N or Equivalent Terminal Blocks 2 USLKG6 or Equivalent Grounding Terminals | LHTR、15HTR |
| PTBS-GET-160S | PTBS Explosion-Proof Junction Box
| Polyester enclosure: 160mm (W) × 160mm (H) × 90mm (D) 1 - PTBS junction box 160 specification enclosure, with one M40×1.5 hole at the bottom 1 - PTBS-GET-S4 bracket 4 - UK6N or equivalent specification terminal blocks 2 - USLKG6 or equivalent specification grounding terminals | LHTR、15HTR |
| PTBS-GET-160T | PTBS Explosion-Proof Junction Box
| Polyester enclosure: 160mm (W) × 160mm (H) × 90mm (D) 1 - PTBS junction box 160 specification enclosure, with one M40×1.5 hole at the bottom 1 - PTBS-GET-S4 bracket 4 - UK6N or equivalent specification terminal blocks 2 - USLKG6 or equivalent specification grounding terminals | LHTR、15HTR |
| PTBS-GET-S3 | PTBS Explosion-Proof Junction Box Support Base | New integrated base (small hole)
| |
| PTBS-GET-S4 | PTBS Explosion-Proof Junction Box Support Base | New Integrated Base (Large Hole)
|
