| Ref No.: | PTBS-GET-120 |
| Composition: | 1 junction box with terminal, 1 three-hole support base
|

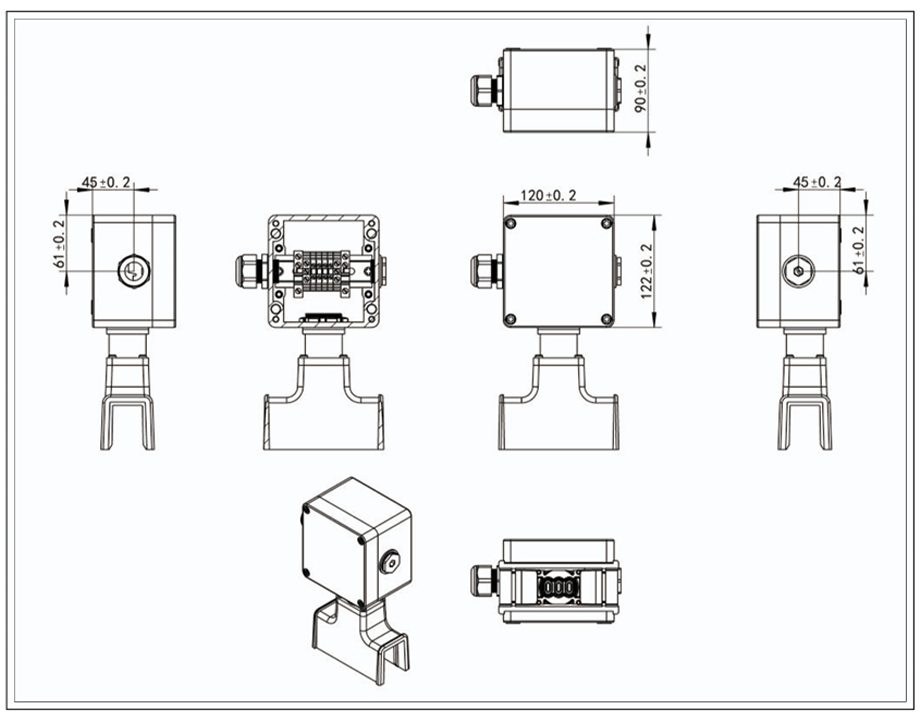

| Dimensions:
| Main body dimensions 122*120*90 (unit:mm), excluding the support base dimensions
|
| Applicable Heating Cable:
| HTLe 、 HTR 、 HTP 、 HTS 、 FCW |
| Protection level:
| IP66 |
| Ambient temperature range:
| -60℃~60℃
|
| Minimum installation temperature:
| -60℃
|
| Explosion-proof mark:
| Ex eb ⅡC Gb,Ex tb ⅢC Db |
| Rated voltage:
| 110~277Vac, 380Vac/660Vac, 50/60Hz
|
| Shell, cover, and bracket:
| BMC unsaturated polyester
|
| Lid screws:
| stainless steel
|
| Ref No. | Product Name
| Product Description
| Applicable line type
|
PTBS-GET-120 (4mm²) | PTBS Explosion-Proof Junction Box | Polyester enclosure: 120mm (W) x 122mm (H) x 90mm (D) 1- PTBS junction box 120 specification enclosure, with 1 M40×1.5 hole at the bottom 1 M25×1.5 hole on each side 1- PTBS-GET-S1 bracket 1 M25×1.5 explosion-proof cable gland (round, PA66 material) 1 M25×1.5 explosion-proof blind plug (PA66 material) 4- UK5N or terminals of the same specification 2- USLKG5 or grounding terminals of the same specification | HTLe, HTR. HTP HTS. FCW |
PTBS-GET-120 (6mm²) | PTBS Explosion-Proof Junction Box | Polyester enclosure: 120mm (W) x 122mm (H) x 90mm (D) 1- PTBS junction box 120 specification enclosure, with 1 M40×1.5 hole at the bottom 1 M25×1.5 hole on each side 1- PTBS-GET-S1 bracket 1 M25×1.5 explosion-proof cable gland (round, PA66 material) 1 M25×1.5 explosion-proof blind plug (PA66 material) 4- UK5N or terminals of the same specification 2- USLKG5 or grounding terminals of the same specification | HTLe, HTR. HTP HTS. FCW |
| PTBS-GET-2 | PTBS Explosion-Proof Junction Box | Polyester Enclosure: 120mm (W) × 122mm (H) × 90mm (D) 1- PTBS junction box, 120 size enclosure, 1-M40×1.5 hole at the bottom 1-M25×1.5 hole on each of the left and right sides 1- PTBS-GET-S1 bracket 1-M25×1.5 explosion-proof blind plug (PA66 material) 4- UK6N or terminals of the same specification 2- USLKG6 or grounding terminals of the same specification 1- wiring kit (including 2 cable glands and 2 yellow-green heat shrink tubes) | HTLe, HTR. HTP HTS. FCW |
PTBS-GET-120H (4mm²) | PTBS Explosion-Proof Junction Box | Polyester housing: 120mm (W) × 122mm (H) × 90mm (D) 1-PTBS junction box, 120 specification housing, bottom with one M40×1.5 hole Each of the left and right sides with one M25×1.5 hole 1-PTBS-GET-S2 bracket 1-M25x1.5 incoming explosion-proof gland (round opening, PA66 material) 1-M25×1.5 explosion-proof blind plug (PA66 material) 4-UK5N or equivalent terminal blocks 2-USLKG5 or equivalent grounding terminals | HTLe, HTR. HTP HTS. FCW |
PTBS-GET-120H (6mm²) | PTBS Explosion-Proof Junction Box | Polyester housing: 120mm (W) × 122mm (H) × 90mm (D) 1-PTBS junction box, 120 specification housing, bottom with one M40×1.5 hole Each of the left and right sides with one M25×1.5 hole 1-PTBS-GET-S2 bracket 1-M25x1.5 incoming explosion-proof gland (round opening, PA66 material) 1-M25×1.5 explosion-proof blind plug (PA66 material) 4-UK5N or equivalent terminal blocks 2-USLKG5 or equivalent grounding terminals | HTLe, HTR. HTP HTS. FCW |
| PTBS-GET-S1 | PTBS Explosion-Proof Junction Box Support Base |
| |
| PTBS-GET-S2 | PTBS Explosion-Proof Junction Box Support Base |
