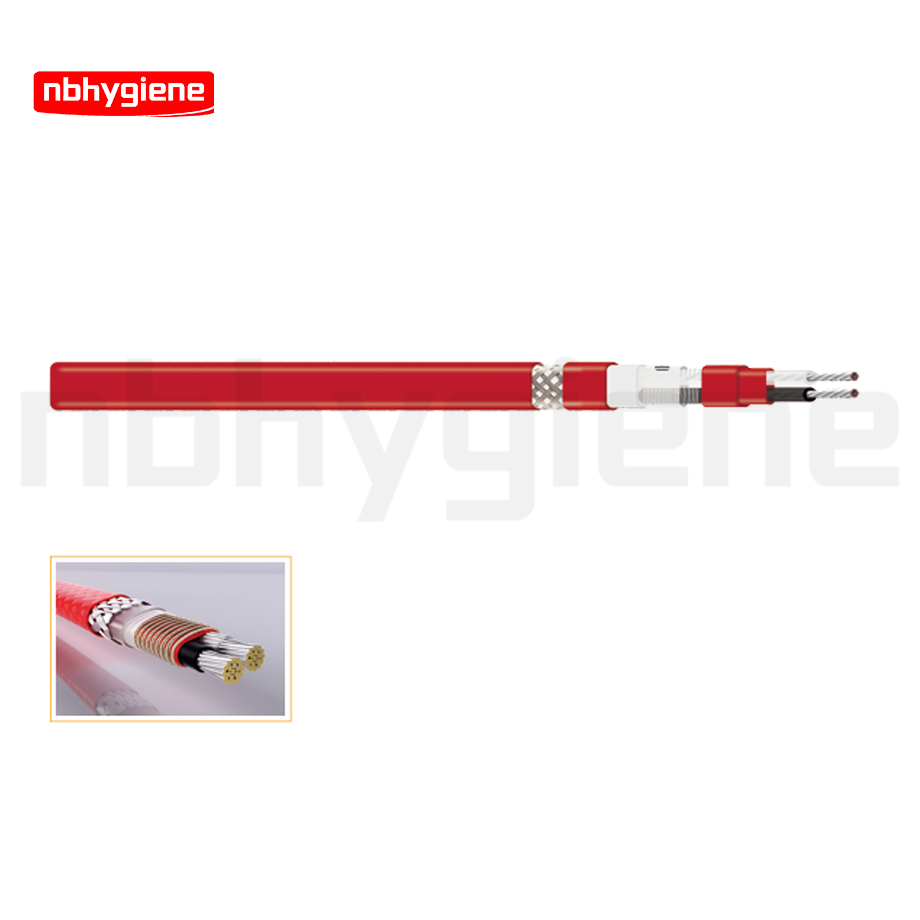

FCW parallel constant power electric heating tape is widely used for the heating needs of industrial pipelines and related equipment. For applications that require both stable high power output and higher exposure temperature for freeze protection and temperature maintenance, it is an excellent choice. FCW parallel constant power electric heating tape can provide an output power of up to 40 W/m and withstand temperatures of up to 205°C during steam purging or power outage; the stable heating power also ensures that the FCW electric heating tape maintains a relatively low starting current, without causing excessive impact on the entire power system.
| Rated Voltage:
Maximum exposure temperature: Minimum installation temperature: Explosion-proof label: Minimum bending radius: Dimensions: | 110-120V (FCW 1) /220-240V (FCW 2) +205°C (401°F) -60℃(-76°F) Ex eb IIC Gb , Ex tb IIIC Db Not less than 5 times the product's outer diameter 9mm(W)x6mm(T) |
Specification:
| Ref No. | Output Power (W/m)
| Voltage (V)
| Maximum Operating Temperature (℃)
| Maximum Circuit Length (m)
| Maximum Exposure Temperature (℃)
|
FCW-10 FCW-20 FCW-30 FCW-40 | 10 20 30 40 | 230 230 230 230 | 150 120 90 65 | 210 180 150 140 | 205 205 205 205 |
