HTU⁺ Ultra-high temperature self-limiting electric heating tape
面议

Product Applications:

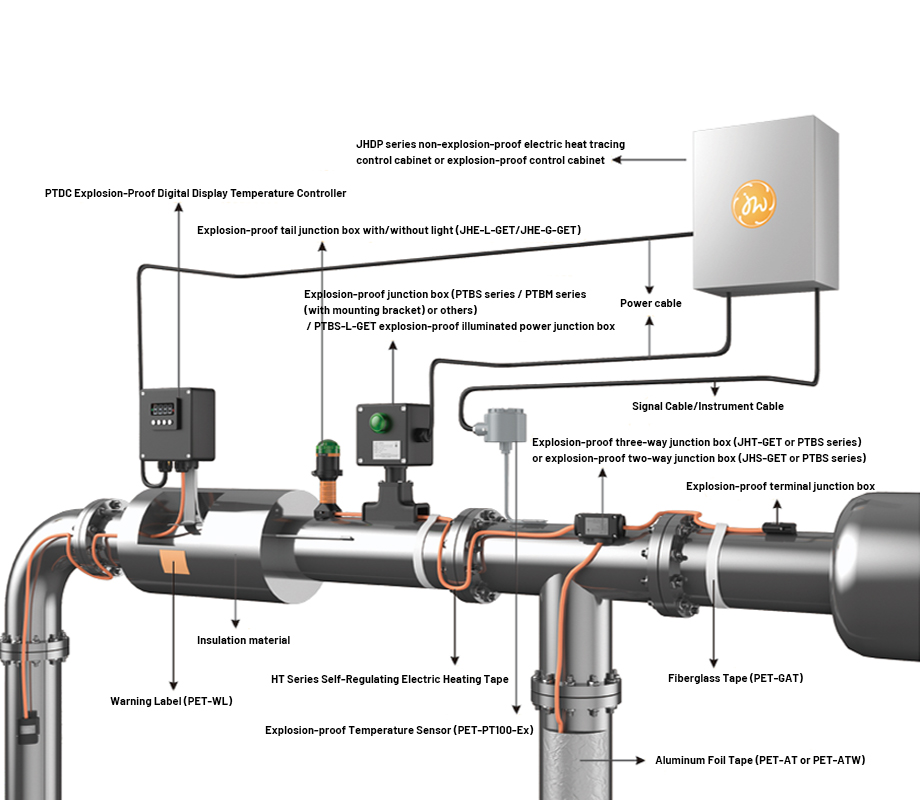

HTU⁺ ultra-high temperature self-regulating electric heat tracing tape can be used for applications such as freeze protection and process temperature maintenance for pipelines and storage tanks under ultra-high continuous operating temperatures (up to 210°C). At the same time, this product can withstand a maximum continuous exposure temperature of up to 260°C, including intermittent or continuous long-term high-temperature steam purging environments, and it can also be installed and used in ultra-low temperature environments of -60°C. In practical terms, the product’s maximum maintenance temperature (210°C) and maximum continuous exposure temperature (260°C) provide high output power in high-temperature environments. It can maintain production conditions for many organic media in the petrochemical and coal chemical industries, protect high-temperature media from freezing in extremely low ambient temperatures, and also perform well in oil.


Technical Specifications:

Rated Voltage:
Maximum operating temperature:
Maximum exposure temperature:
Explosion-proof label:
Temperature group:
Enclosure protection rating:
Minimum installation temperature:
Minimum bending radius:
Dimensions:

110-120V (HTU⁺ 1) / 220-240V (HTU⁺ 2)
+210℃(410°F)
+260℃(500°F)
Ex eb IIC Gb , Ex tb IIIC Db
T2
IP66/67
-60℃
33mm
CR: 12.4mm(W)×4.8mm(T)
