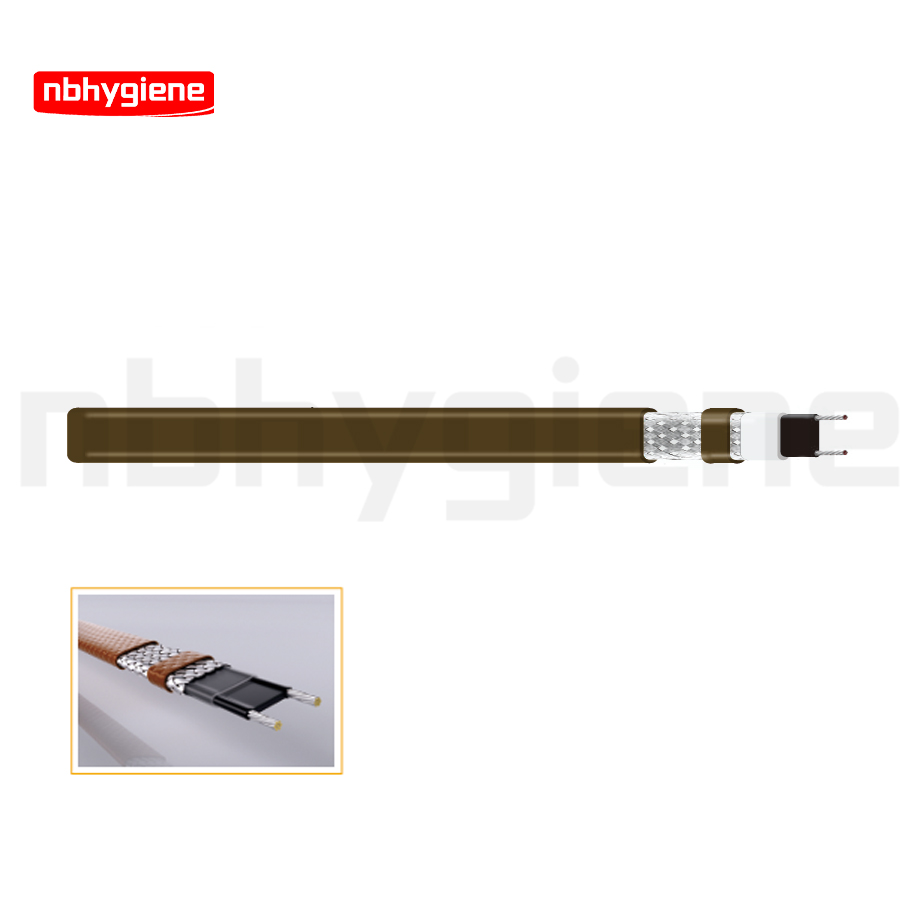

HTR Low-temperature self-limiting electrical heating tape
面议

Product Application:

HTR low-temperature self-regulating electric heating tape can be used for frost protection and process temperature maintenance in civil and industrial applications where there is no steam purging. The maximum maintainable process temperature can reach 65℃. Regardless of whether the pipeline is laid overhead or underground, this product model can maintain the temperature of the medium inside the pipeline and preserve its state.


Technical Specifications:

Rated Voltage:
Maximum operating temperature:
Maximum exposure temperature:
Explosion-proof label:
Temperature group:
Enclosure protection rating:
Minimum installation temperature:
Minimum bending radius:
Dimensions:

110-120V (HTR 1) / 220-240V (HTR 2)
+65℃(150°F)
+85℃(185°F)
Ex eb IIC Gb , Ex tb IIIC Db
T5/T6
IP66/67
-60℃(-76°F)
30mm
CR: 12.56mm(W)×5.96mm(T)/CT: 11.96mm(W)×5.36mm(T)
